Outdoor
01
Waterproof 3IP strip strobe light
Light Source
☀ Color Light: 672 RGB LEDs
☀ White Light: 112 WW LEDs
☀ Power: 420W
☀ White Light: 112 WW LEDs
☀ Power: 420W
Beam Angle
☀ Color Light Beam Angle: 101°
☀ White Light Beam Angle: 108°
☀ White Light Beam Angle: 108°
Spot Angle
☀ Color Light Spot Angle: 149°
☀ White Light Spot Angle: 152°
☀ White Light Spot Angle: 152°
Control Zones
☀ Color Light: 32 zones individually controllable
☀ White Light: 16 zones individually controllable
☀ White Light: 16 zones individually controllable
Features
☀ Excellent color mixing capabilities
☀ Powerful high-output strobe effects
☀ Built-in splicing latches for quick alignment and connection
☀ Electronic fog effect
☀ Smooth dimming from 0-100%
☀ Powerful high-output strobe effects
☀ Built-in splicing latches for quick alignment and connection
☀ Electronic fog effect
☀ Smooth dimming from 0-100%
Optical System
☀ High-efficiency optical system

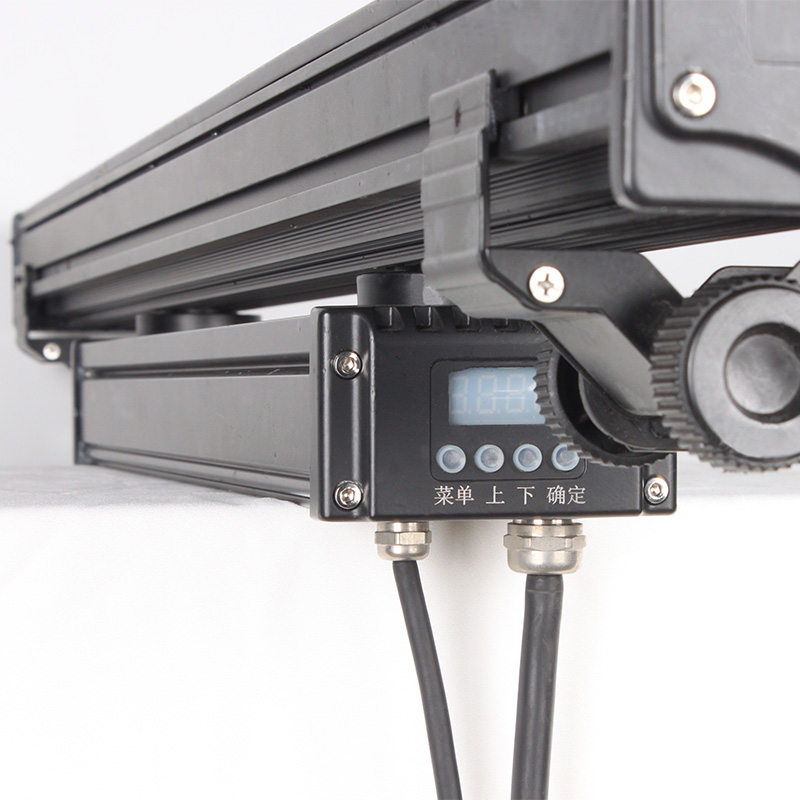

Control & Programming
☀ 4 Touch Buttons
☀ Control Panel: 1.77" Color LCD Display
☀ Control Protocol: DMX512, RDM
☀ DMX Channel Modes: 11
☀ Control Channels: 7/15/21/39/112/17/33/65/68/117/70
☀ Software Upgrade: Via DMX connection for software updates
☀ Control Panel: 1.77" Color LCD Display
☀ Control Protocol: DMX512, RDM
☀ DMX Channel Modes: 11
☀ Control Channels: 7/15/21/39/112/17/33/65/68/117/70
☀ Software Upgrade: Via DMX connection for software updates
Fixture Dimensions
☀ Length: 1,000mm
☀ Width: 139mm
☀ Height: 90mm
☀ Net Weight: 8.6kg (19 lbs) (Note: The exact kg weight is missing, only lbs is provided)
☀ Width: 139mm
☀ Height: 90mm
☀ Net Weight: 8.6kg (19 lbs) (Note: The exact kg weight is missing, only lbs is provided)
Carton Specifications
☀ Length: 1100mm
☀ Width: 195mm
☀ Height: 320mm
☀ Weight: 10.5kg
☀ Width: 195mm
☀ Height: 320mm
☀ Weight: 10.5kg
Operating Environment
☀ Maximum Ambient Temperature: 40°C
☀ Minimum Operating Temperature: -10°C
☀ Maximum Surface Temperature: 65°C
☀ Protection Rating: IP66
☀ Minimum Operating Temperature: -10°C
☀ Maximum Surface Temperature: 65°C
☀ Protection Rating: IP66
Product Features
☀ High-performance strip strobe light, integrating color light and white light.
☀ Equipped with 672 RGB LEDs and 112 WW LEDs, providing a powerful 420W.
·☀ Both color light and white light feature wide beam angles and spot angles, with 32 zones and 16 zones of independent control respectively.
☀ Boasts excellent color mixing capabilities, strong strobe effects, and built-in splicing pins for quick splicing and alignment.
☀ In addition, it features an electronic fog effect and a smooth dimming function from 0-100%.
☀ With an efficient optical system, an intuitive touch control panel, and multiple control protocols, it is easy to operate and highly versatile.
☀ Suitable for various stage, performance, and event lighting needs.
☀ Equipped with 672 RGB LEDs and 112 WW LEDs, providing a powerful 420W.
·☀ Both color light and white light feature wide beam angles and spot angles, with 32 zones and 16 zones of independent control respectively.
☀ Boasts excellent color mixing capabilities, strong strobe effects, and built-in splicing pins for quick splicing and alignment.
☀ In addition, it features an electronic fog effect and a smooth dimming function from 0-100%.
☀ With an efficient optical system, an intuitive touch control panel, and multiple control protocols, it is easy to operate and highly versatile.
☀ Suitable for various stage, performance, and event lighting needs.
