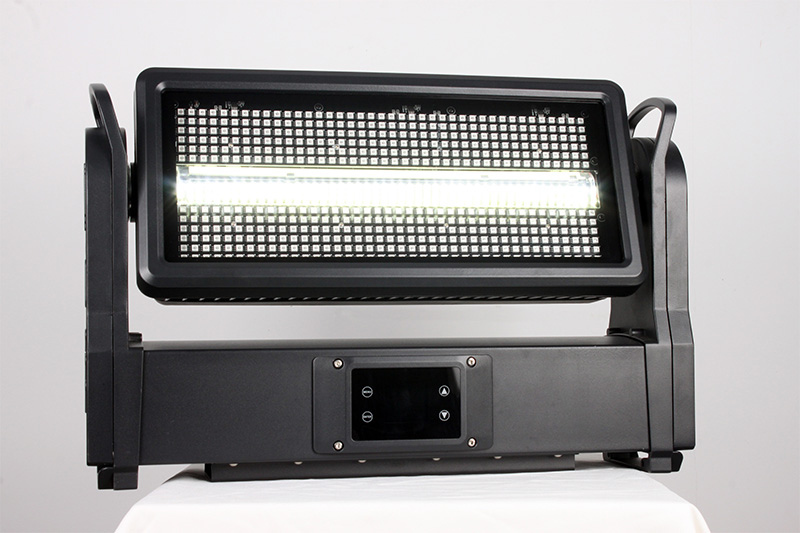

Moving head screen flash LED Waterproof Strobe lamp MH-1000ST
Product application
Optical System
☀ 480pcs0.5WLE D,R G B
☀ Segment:8 Segments（2*4)
☀ 144pcs 5W LE D，6500K
☀ Segment:4 Segments
☀ Life expectancy:50,000H
☀ Segment:8 Segments（2*4)
☀ 144pcs 5W LE D，6500K
☀ Segment:4 Segments
☀ Life expectancy:50,000H
Tilt Movement
☀ Tilt movement:185°(16bit)
☀ Fast, stable, quite, automatic Tilt position correction
☀ Fast, stable, quite, automatic Tilt position correction

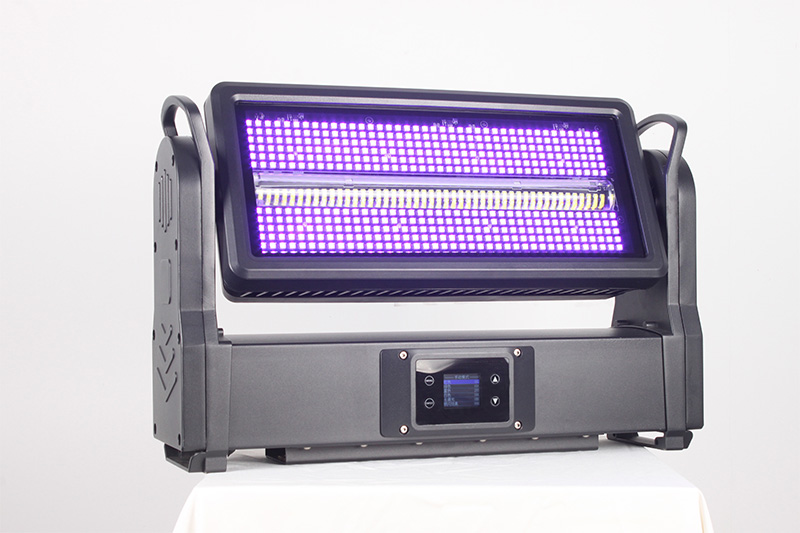

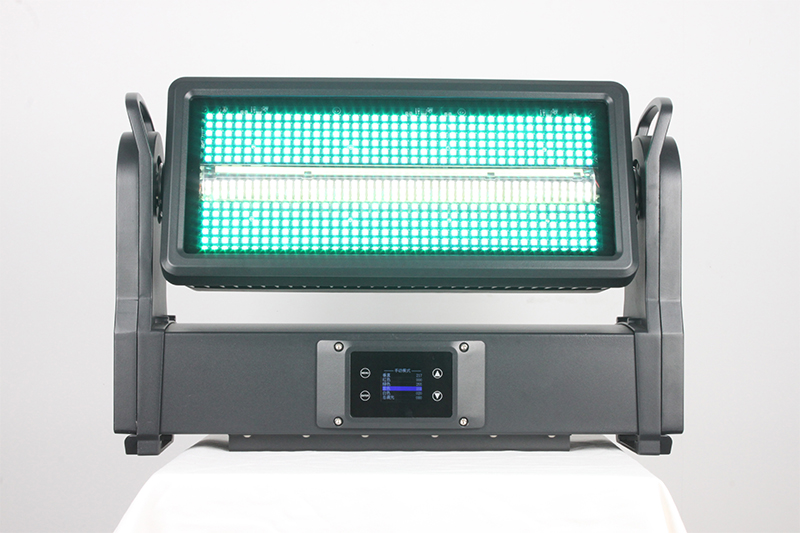

Color System
☀ Color: R G B W Linear dim ming
☀ FOptional 1080pcs 0.5W RGBW LED
☀ FOptional 1080pcs 0.5W RGBW LED
Effects
☀ Beam angle:120°
☀ Strobe:1-25Hz
☀ Dim ming:0-100%linear dim ming
☀ Multiple built-in LE D macro effects
☀ Strobe:1-25Hz
☀ Dim ming:0-100%linear dim ming
☀ Multiple built-in LE D macro effects
IP Rating
☀ IP66
Software
☀ Multiple built-in programs
☀ Upgrade with DMX
☀ Channels:7CH / 14CH / 42CH
☀ Remote reset D M X address by RDM
☀ Upgrade with DMX
☀ Channels:7CH / 14CH / 42CH
☀ Remote reset D M X address by RDM

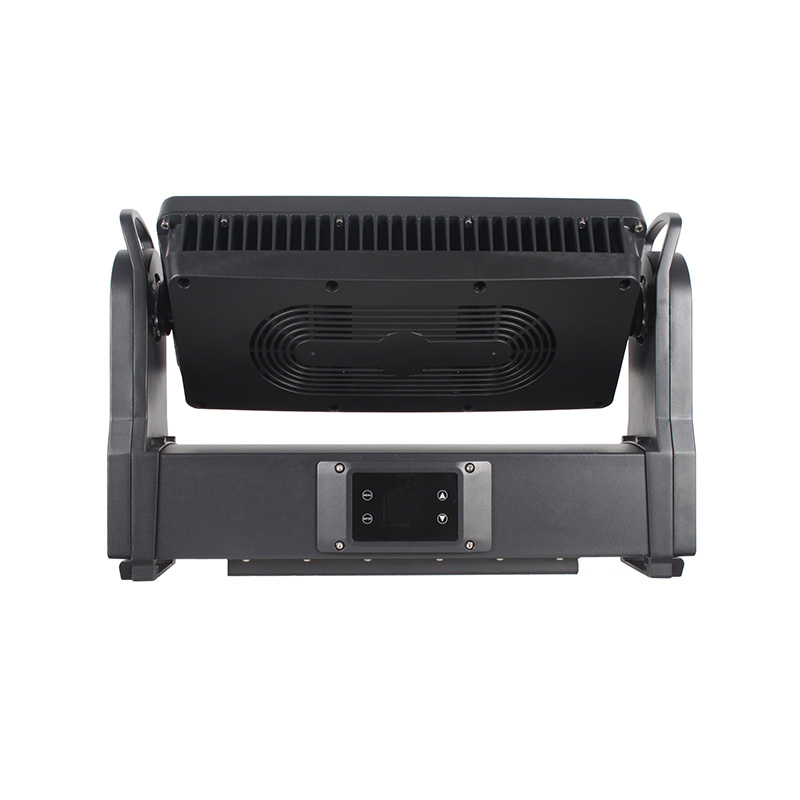

Display
☀ LCD display
☀ Graphical menu display
☀ Four buttons touch panel
☀ Graphical menu display
☀ Four buttons touch panel
Control
☀ DMX512 control
☀ Input signal isolation
☀ RDM protocol
☀ Input signal isolation
☀ RDM protocol
Electric Parameter
☀ AC90-260V 50/60HZ
☀ Power：1000W
☀ Product size:482x178x243mm
☀ Net weight：10KG
☀ Power：1000W
☀ Product size:482x178x243mm
☀ Net weight：10KG
Product feature
☀ High-Performance LEDs: Equipped with 480 pieces of 0.5W RGB LEDs and 144 pieces of 5W 6500K LEDs, providing exceptional lighting effects.
☀ Flexible Adjustment: Supports 185° tilt movement, fast and stable with automatic tilt position correction.
☀ Rich Colors: RGBW color options, with a linear dimming range of 0-100% and a comprehensive color system.
☀ Versatile Applications: Beam angle of 120°, strobe of 1-25Hz, and multiple built-in LED macro effects.
☀ Durability and Reliability: Long lifespan of 50,000 hours, IP66 waterproof rating, suitable for various harsh environments.
☀ Intelligent Control: Supports DMX512 control, with multiple DMX channel options of 7CH/14CH/42CH, equipped with an LCD display and graphical menu display.
☀ Flexible Adjustment: Supports 185° tilt movement, fast and stable with automatic tilt position correction.
☀ Rich Colors: RGBW color options, with a linear dimming range of 0-100% and a comprehensive color system.
☀ Versatile Applications: Beam angle of 120°, strobe of 1-25Hz, and multiple built-in LED macro effects.
☀ Durability and Reliability: Long lifespan of 50,000 hours, IP66 waterproof rating, suitable for various harsh environments.
☀ Intelligent Control: Supports DMX512 control, with multiple DMX channel options of 7CH/14CH/42CH, equipped with an LCD display and graphical menu display.
