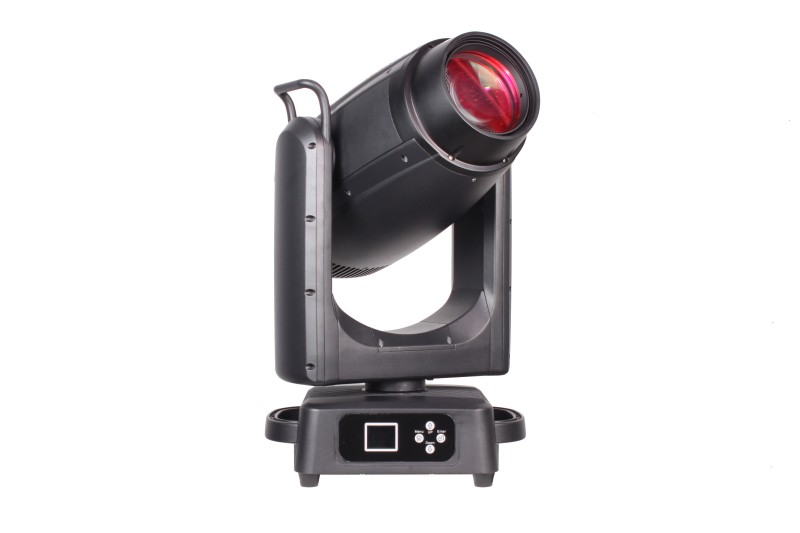

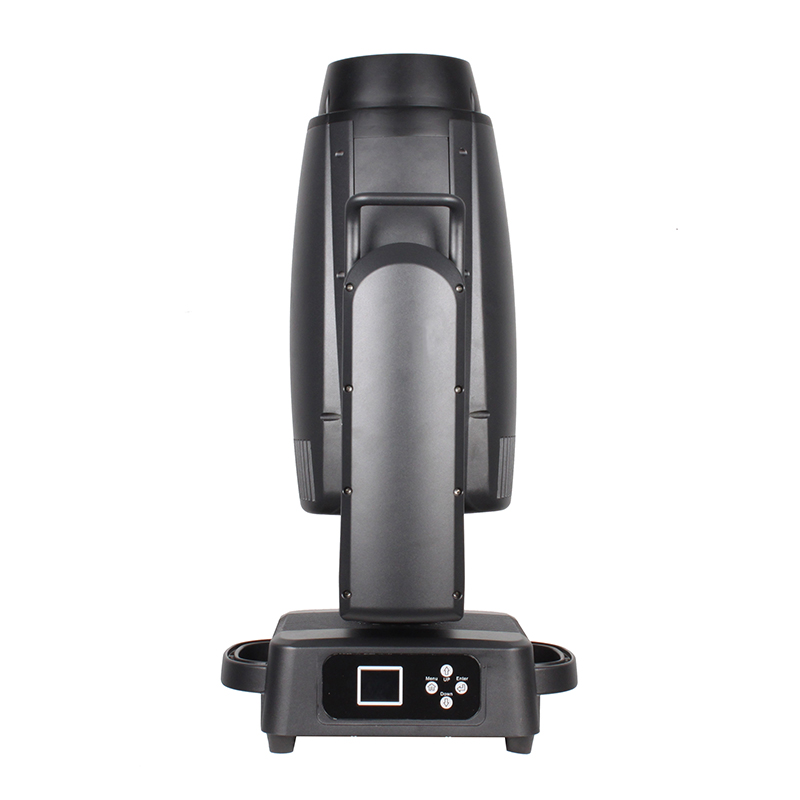

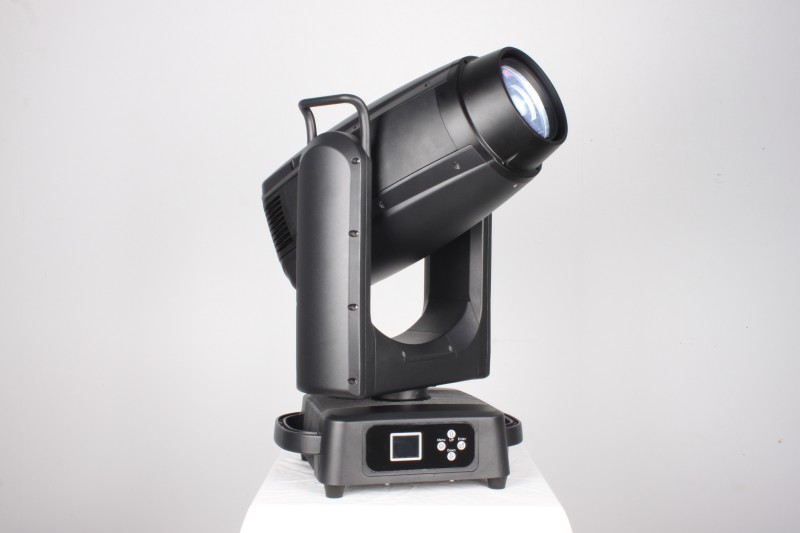

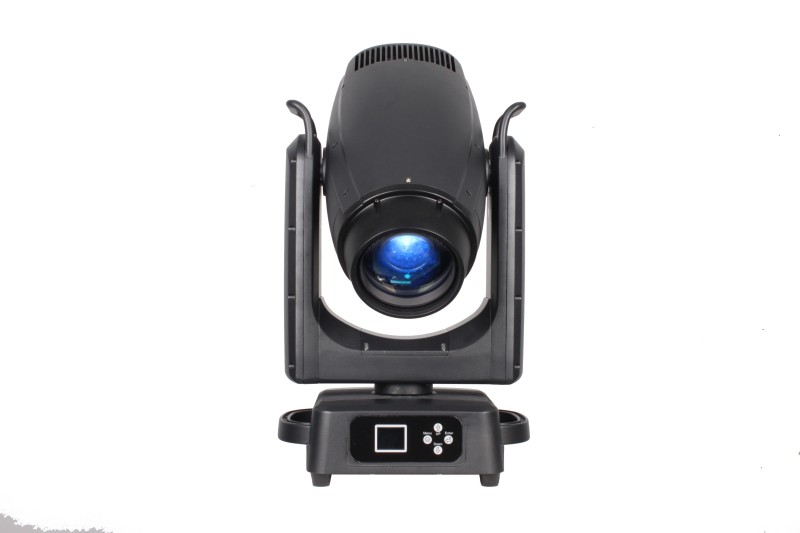

LED profile HL550P Waterproof
Product application



Optical System
☀ Light source: 550W LED, CCT 7500K
☀ Life expectancy:50,000H
☀ Life expectancy:50,000H
Pan&Tilt
☀ Pan movement:540°(16bit)
☀ Tilt movement: 270°(16bit)
☀ Automatic Pan/Tilt position correction
☀ Tilt movement: 270°(16bit)
☀ Automatic Pan/Tilt position correction
Rotating&Static Gobos
☀ Rotating whee:7 gobos+open
☀ Static wheel:8 gobos +open
☀ Gobo rotation and Gobo shaking
☀ Static wheel:8 gobos +open
☀ Gobo rotation and Gobo shaking
Color System
☀ 1 Color wheel:7 colors + open
☀ CMY color mixing + Linear CTO
☀ Half color and rainbow effect
☀ CMY color mixing + Linear CTO
☀ Half color and rainbow effect
Effects
☀ Motorized focus
☀ Zoom range:6°- 45°
☀ 0%-100% linear lris
☀ Strobe: 1-25HZ
☀ Dimming:0- 100% linear dimming
☀ Frost
☀ Zoom range:6°- 45°
☀ 0%-100% linear lris
☀ Strobe: 1-25HZ
☀ Dimming:0- 100% linear dimming
☀ Frost
IP Rating
☀ IP66
Framing module
☀ 4 individually positionable blades with ±45° rotation of the complete framing
Software
☀ Multiple built-in programs
☀ Upgrade with DMX
☀ Channels:34 / 54CH
☀ Upgrade with DMX
☀ Channels:34 / 54CH
Display
☀ LCD display
☀ Graphical menu display
☀ Four buttons touch panel
☀ Graphical menu display
☀ Four buttons touch panel
Control
☀ DMX512 control
☀ Input signal isolation
☀ RDM protocol
☀ Input signal isolation
☀ RDM protocol
Electric Parameter
☀ AC100-260V 50/60HZ
☀ Power:860W
☀ Power:860W
Dimension& Weight
☀ Product size: 350*210*640 mm
☀ Net weight: 34KG
☀ Net weight: 34KG
Product feature
☀ Bright 550 watt / 6,500K LED light source
☀ 19,000 lumen output
☀ Crisp optics with flat field
☀ 1:8 Fast zoom
☀ CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
☀ Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
☀ 7-slot color wheel –for added color choice and split color effects
☀ Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
☀ 7 rotating/indexing gobos – All renowned Martin glass gobos
☀ 8 static gobos for great morphing effects
☀ Animation wheel with continuous bi-directional rotation
☀ Two prisms - 4-facet and linear – rotation and index control for dynamic effects
☀ Heavy frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
☀ employs high-quality waterproof materials and excellent waterproof craftsmanship
☀ 19,000 lumen output
☀ Crisp optics with flat field
☀ 1:8 Fast zoom
☀ CMY color mixing - Vibrant color mixing with a superior palette of colors matching the MAC range
☀ Linear CTO – Daylight to tungsten CCT control and expansion of the CMY palette
☀ 7-slot color wheel –for added color choice and split color effects
☀ Full Curtain Framing blades with +/- 60° rotation of entire system for flexible shape generation
☀ 7 rotating/indexing gobos – All renowned Martin glass gobos
☀ 8 static gobos for great morphing effects
☀ Animation wheel with continuous bi-directional rotation
☀ Two prisms - 4-facet and linear – rotation and index control for dynamic effects
☀ Heavy frost – A light frost leaves gobo artwork visible with a beautiful soft edge.
☀ employs high-quality waterproof materials and excellent waterproof craftsmanship
