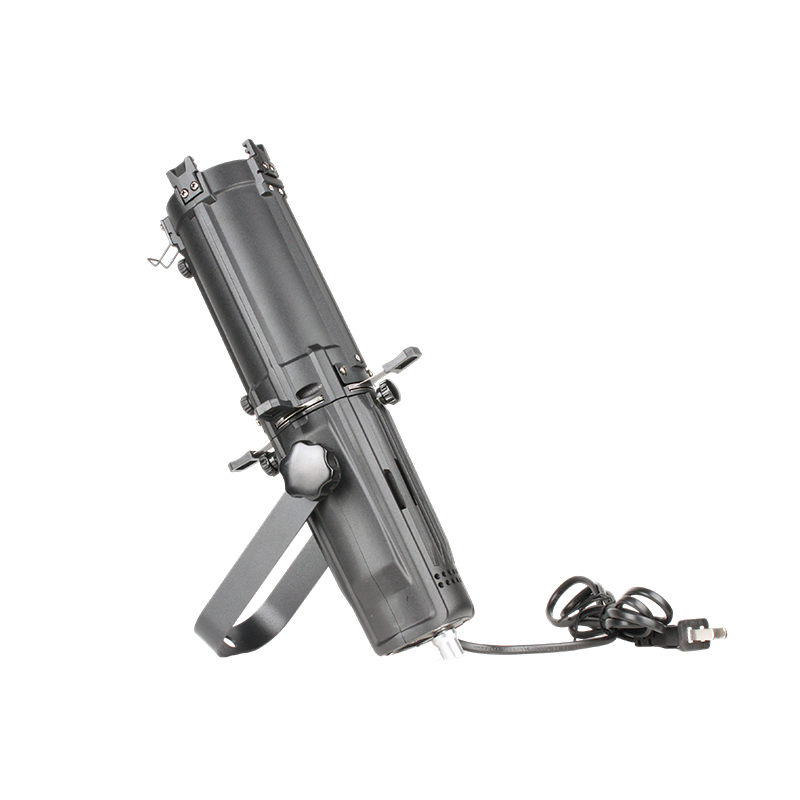

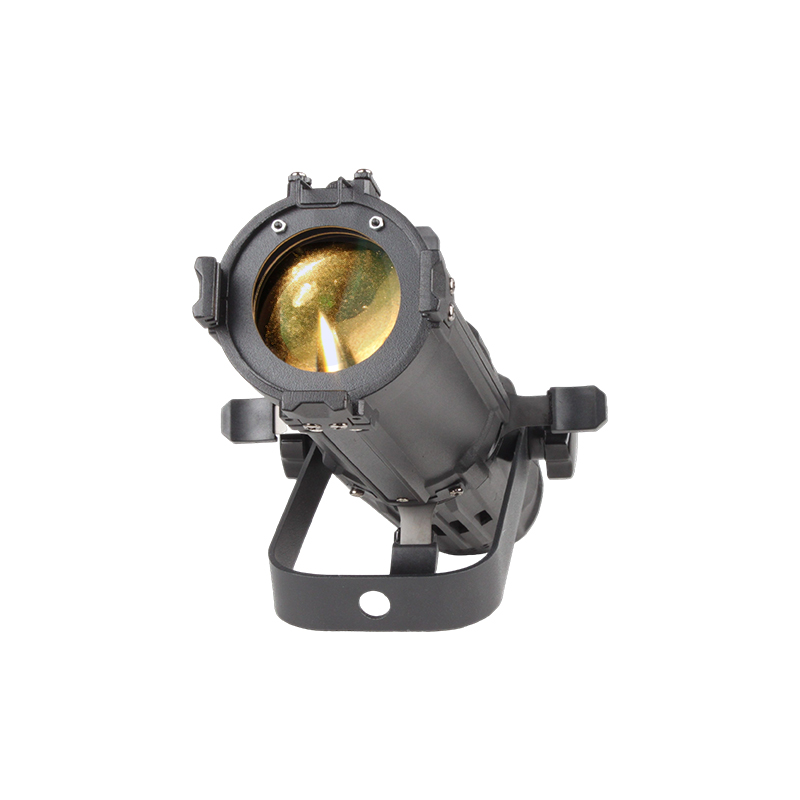

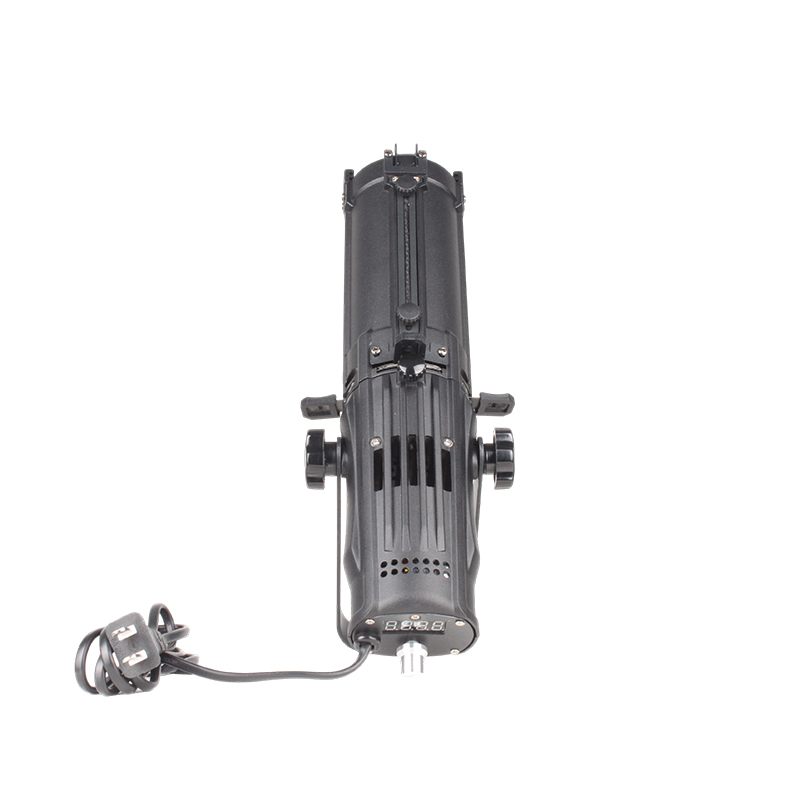

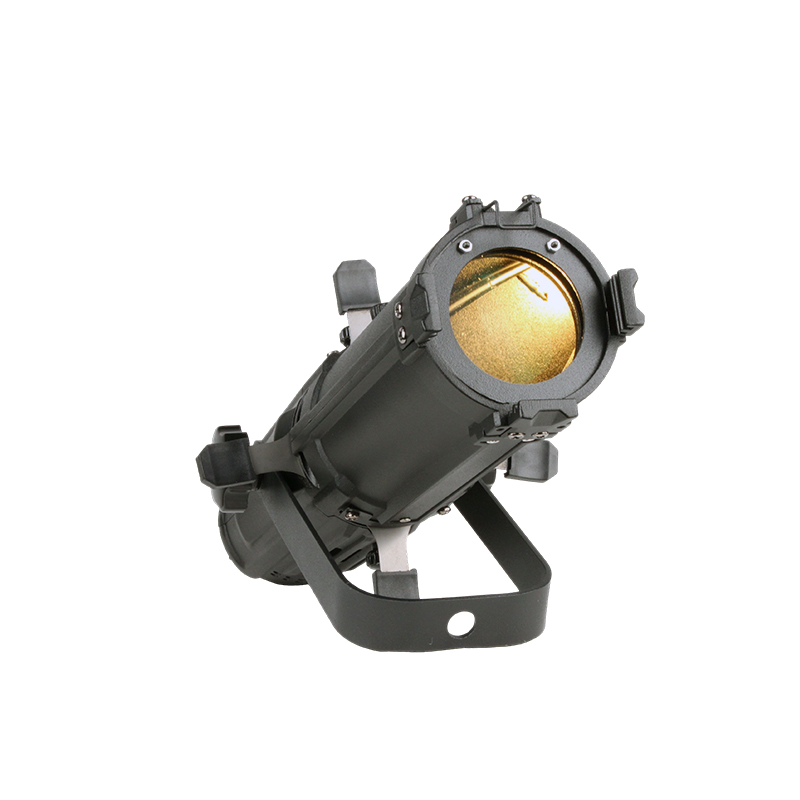

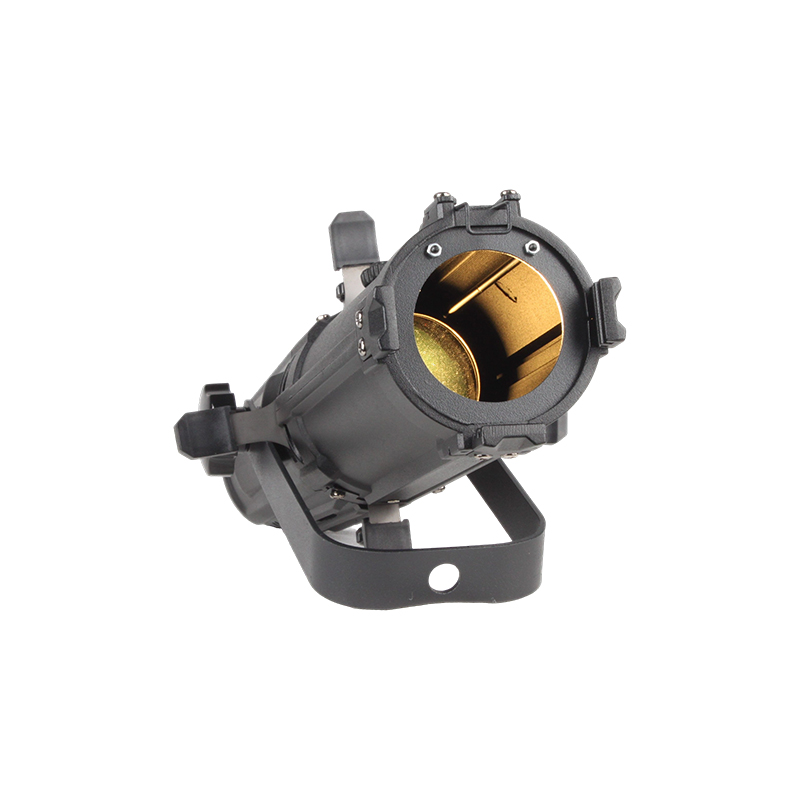

CT30 LED Profile Spotlight
Product application
Power Supply
● Input Voltage: AC100-240V 50/60Hz
● Power Consumption: 840W
Luminaire Specifications
● IP Rating: IP20
● Cooling Method: Fan Cooling
● Maximum Ambient Temperature: 45℃
● Case Color: Black
LED Specifications
● LED: 19 pieces of 40W RGBW 4-in-1 LEDs
● Average Lifespan: 50,000 hours
Control System
● DMX Channels: 21/23/35/78/92/97/99CH
● DMX Connectors: 3-pin + 5-pin XLR Input/Output
● Power Connectors: Cannon Input/Output
● Control Modes: DMX / Master-Slave / Auto / Sound Activation
Movement Capabilities
● Horizontal: 540°/360° with 8-bit precision,
● Vertical: 270° with 16-bit precision
● Precise and rapid X/Y-axis rotation
Display
● Full-color LCD touchscreen with 4 buttons
Fan Speed Adjustment
● Automatically adjusts based on fixture temperature
Color Effects
● RGBW color mixing
● Beam Angle: 3-45° adjustable
● Dimming: 0-100% linear
● Strobe: 0-25Hz, random strobe, and pulse strobe
Product Features
● Universal Compatibility: Supports AC100-240V 50/60Hz power input with a power consumption of 840W, meeting the needs of different countries and regions.
● Robust and Durable: IP20 rated protection for use in various environments; black case design for both aesthetics and durability.
● Efficient Cooling: Employs fan cooling to ensure stability under high-intensity use, with a maximum ambient temperature tolerance of 45℃.
● Superior Light Source: Equipped with 19 pieces of 40W RGBW 4-in-1 LED chips, offering a long average lifespan of 50,000 hours, rich colors, and high brightness.
● Flexible Control: Supports multiple DMX channel options (21/23/35/78/92/97/99CH) with 3-pin + 5-pin XLR connectors, and features DMX, master-slave, auto, and sound activation control modes to meet diverse scenario needs.
● Precise Rotation: Offers precise and rapid X/Y-axis rotation with 540°/360° (8-bit) horizontal and 270° (16-bit) vertical movement for accurate positioning.
● Intelligent Operation: Includes a full-color LCD touchscreen with 4 buttons for intuitive and easy operation; fan speed adjusts automatically based on fixture temperature for energy efficiency.
● Rich Color Effects: RGBW color mixing technology with adjustable beam angles from 3-45°, dimming range of 0-100%, and support for linear strobe, random strobe, and pulse strobe to create diverse visual effects.
