Indoor
01

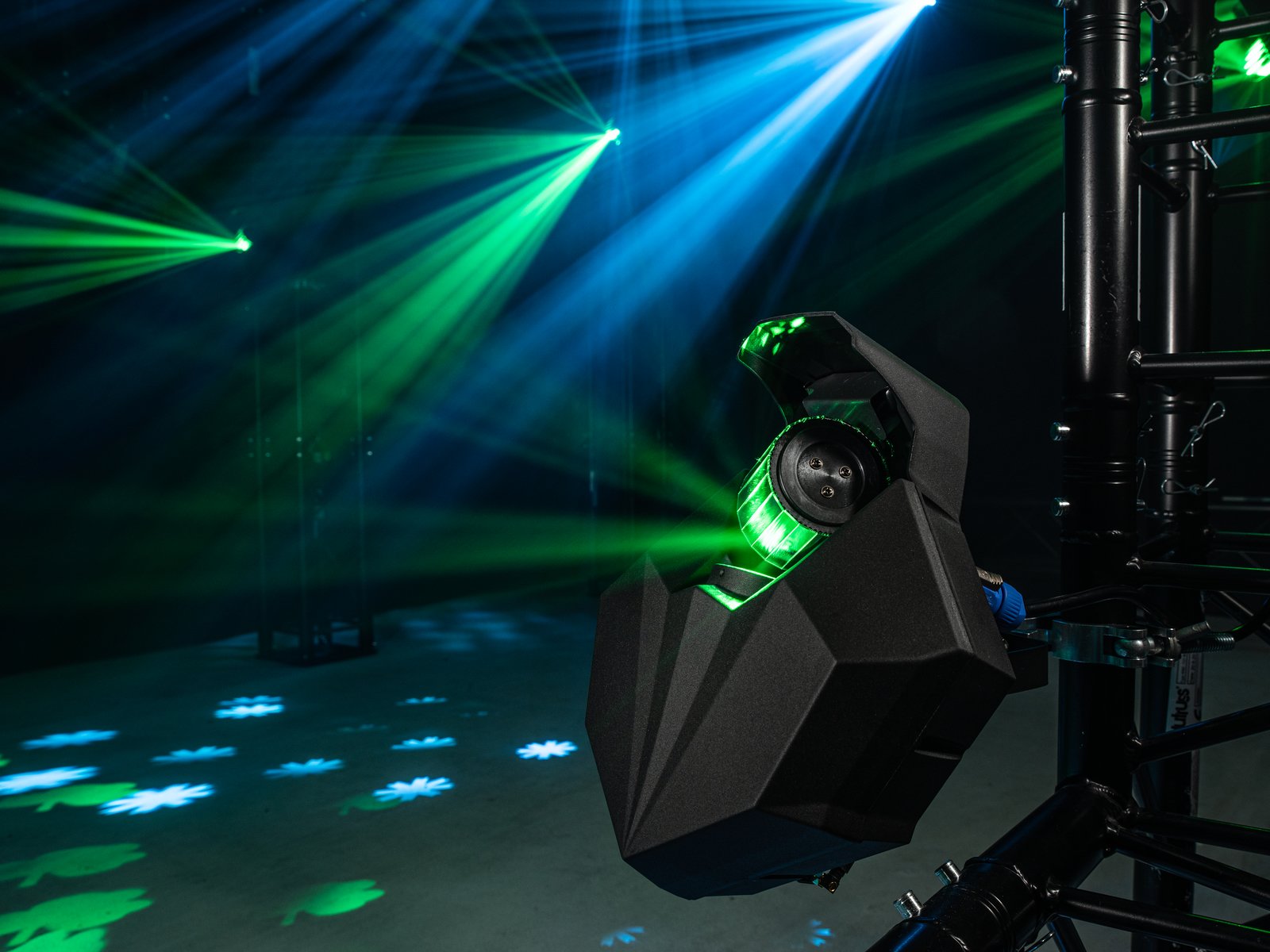

88W LED drum LED Beam effect lamp CAT100
Product application
Optical System
☀ Light source: 100W LED, CCT 7500K
☀ Life expectancy:50,000H
☀ Life expectancy:50,000H
Pan&Tilt
☀ Pan movement:120°(16 bit)
☀ Tilt movement: 90°(16 bit)
☀ Automatic Pan/Tilt position correction
☀ Tilt movement: 90°(16 bit)
☀ Automatic Pan/Tilt position correction
Gobos Wheel
☀ Gobo: 8 gobo +1 beam reducer
☀ Bi-directional rotation with gobo shaking
☀ Bi-directional rotation with gobo shaking
Color System
☀ Color wheel together with gobo wheel
Effects
☀ Beam Angle:60°
☀ Mirror ball roller with continuous rotation
☀ Dimming:0-100% linear dimming
☀ Shutter: mechanical with various speed
☀ Strobe:1-25Hz or random
☀ Mirror ball roller with continuous rotation
☀ Dimming:0-100% linear dimming
☀ Shutter: mechanical with various speed
☀ Strobe:1-25Hz or random
IP Rating
☀ IP22
Software
☀ Multiple built-in programs
☀ Upgrade with DMX
☀ Channels:7 CH
☀ Remote reset DMX address by RDM
☀ Upgrade with DMX
☀ Channels:7 CH
☀ Remote reset DMX address by RDM
Display
☀ LCD display
☀ Four buttons touch panel
☀ Four buttons touch panel
Control
☀ DMX512 control
☀ Input signal isolation
☀ RDM protocol
☀ Input signal isolation
☀ RDM protocol
Electric Parameter
☀ AC90-260V 50/60HZ
☀ Power:1200W
☀ Power:1200W
Dimension& Weight
☀ Product size: 310*280*150 mm
☀ Net weight: 47KGs
☀ Net weight: 47KGs
Product feature
☀ ☀ High-efficiency Light Source: Equipped with a 100W LED, with a color temperature of 7500K and a lifespan of up to 50,000 hours.
☀ Rich Effects: Equipped with 8 gobos + 1 beam reducer, capable of achieving rich effects through the color wheel and gobo wheel.
☀ Precise Control: Features 0-100% linear dimming and a mechanical shutter with various speed settings to meet diverse scene requirements.
☀ Convenient Operation: Supports DMX512 control with RDM protocol, allowing remote reset of DMX addresses. Equipped with a cold LCD display and a four-button touch panel for easy user operation.
