400W multifunctional LED three-in-one lamp CL400
Product application




Optical/power systems
☀ Light source: 400W LED, CCT 7500K.
☀ Life expectancy:50,000H.
☀ Life expectancy:50,000H.
Pan&Tilt
☀ Pan movement:540°(16bit).
☀ BTilt movement: 270°(16bit).
☀ Automatic Pan/Tilt position correction.
☀ BTilt movement: 270°(16bit).
☀ Automatic Pan/Tilt position correction.
Rotating&Static Gobos
☀ ZRotating wheel: 7 gobos+open.
☀ Static wheel:11 gobos +open.
☀ Gobo rotation and Gobo shaking.
☀ Static wheel:11 gobos +open.
☀ Gobo rotation and Gobo shaking.
Color System
☀ 1 Color wheel:14 colors + open.
☀ CMY color mixing + Linear CTO.
☀ Half color and rainbow effect.
☀ CMY color mixing + Linear CTO.
☀ Half color and rainbow effect.
Effects
☀ Beam angle: 2-40°
☀ Prism: one 4-sided prism, one bar prism
☀ Atomization: one medium atomizing disk
☀ Dimming: 0-100% linear dimming
☀ Strobe: high-speed electronic strobe adjustment
☀ Strobe rate: up to 1-25 times/second or random strobe
☀ Prism: one 4-sided prism, one bar prism
☀ Atomization: one medium atomizing disk
☀ Dimming: 0-100% linear dimming
☀ Strobe: high-speed electronic strobe adjustment
☀ Strobe rate: up to 1-25 times/second or random strobe
IP Rating
☀ IP22
Software
☀ Multiple built-in programs
☀ Upgrade with DMX
☀ Channels:22/25 CH
☀ The address code and lamp reset can be changed from the console.
☀ Upgrade with DMX
☀ Channels:22/25 CH
☀ The address code and lamp reset can be changed from the console.
Display
☀ LCD display
☀ Graphical menu display
☀ Four buttons touch panel
☀ Graphical menu display
☀ Four buttons touch panel

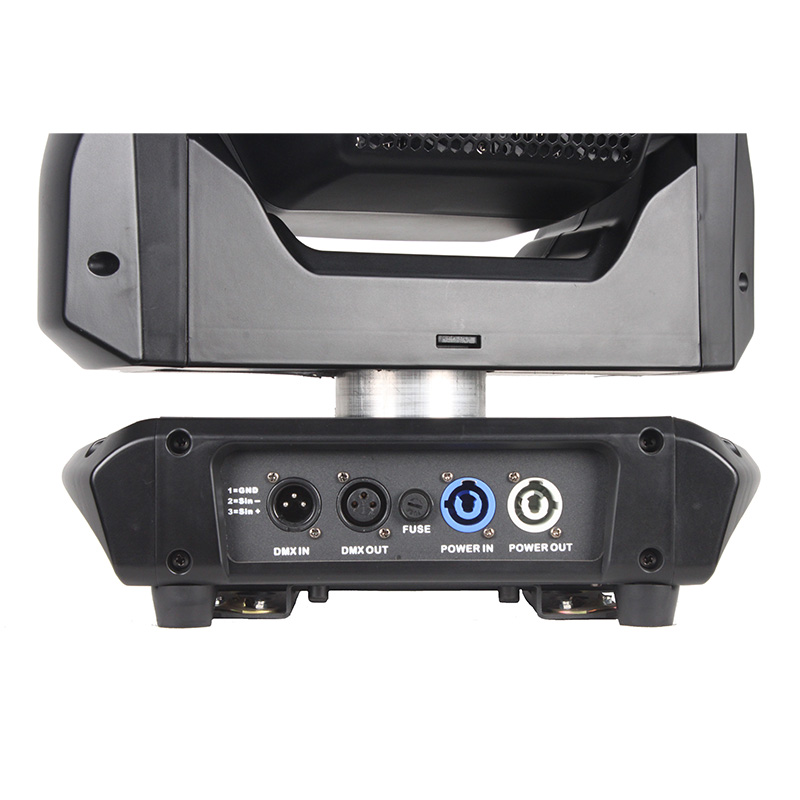

Control
☀ DMX512 control
☀ Input signal isolation
☀ RDM protocol
☀ The address code and lamp reset can be changed from the console.
☀ Input signal isolation
☀ RDM protocol
☀ The address code and lamp reset can be changed from the console.
Electric Parameter
☀ AC90-260V 50/60HZ
☀ Power:480W
☀ Power:480W
Dimension& Weight
☀ Product size: 354*233*638 mm
☀ Net weight: 15KG
☀ Net weight: 15KG
Product feature
☀ Efficient Light Source: Features a 400W LED with a CCT of 7500K and a lifespan of up to 50,000 hours.
☀ Flexible Rotation: Supports 540° pan and 270° tilt movements with automatic position correction.
☀ Rich Gobos: Equipped with rotating and static gobo wheels, featuring gobo rotation and shake effects.
☀ Colorful Palette: 14-color wheel + CMY color mixing + linear CTO, achieving half-color and rainbow effects.
☀ Diverse Effects: Adjustable beam angle (2-40°), with a 4-sided prism and bar prism, medium fog effect, linear dimming (0-100%), high-speed electronic strobe, and strobe rates up to 1-25 times/second or random strobe.
☀ Intelligent Control: Multiple built-in programs, DMX upgrade support, 22/25 channels, address code and lamp reset via console.
☀ Intuitive Display: LCD display with graphical menu and a four-button touch panel for easy operation.
☀ Professional Control: Supports DMX512 control, input signal isolation, and RDM protocol compatibility.
☀ Versatile Power Adaptability: AC90-260V 50/60HZ input voltage range with a power consumption of 480W.
☀ Flexible Rotation: Supports 540° pan and 270° tilt movements with automatic position correction.
☀ Rich Gobos: Equipped with rotating and static gobo wheels, featuring gobo rotation and shake effects.
☀ Colorful Palette: 14-color wheel + CMY color mixing + linear CTO, achieving half-color and rainbow effects.
☀ Diverse Effects: Adjustable beam angle (2-40°), with a 4-sided prism and bar prism, medium fog effect, linear dimming (0-100%), high-speed electronic strobe, and strobe rates up to 1-25 times/second or random strobe.
☀ Intelligent Control: Multiple built-in programs, DMX upgrade support, 22/25 channels, address code and lamp reset via console.
☀ Intuitive Display: LCD display with graphical menu and a four-button touch panel for easy operation.
☀ Professional Control: Supports DMX512 control, input signal isolation, and RDM protocol compatibility.
☀ Versatile Power Adaptability: AC90-260V 50/60HZ input voltage range with a power consumption of 480W.
